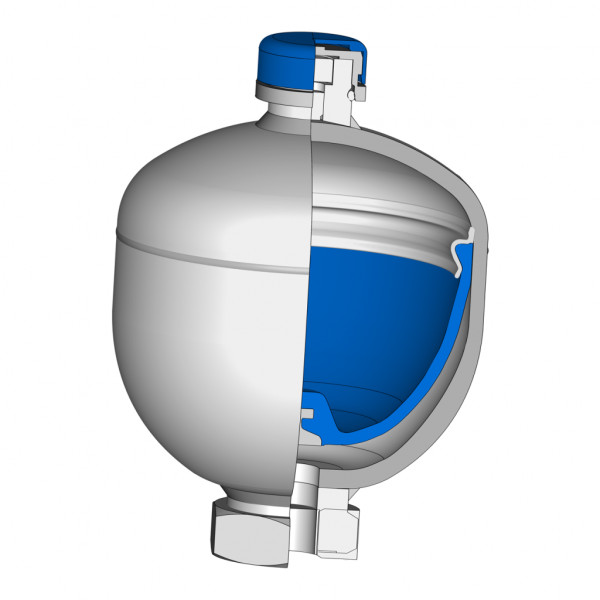

Diaphragm Accumulator DACC - 0.32L x 210 / 0,0 bar x 92 x 140.5 - G1/2 (F) - Freudenberg - 032-1315-044-611 - Steel/NBR - CE/PED - 37004553 Order online at sealing Technologies, Freudenberg 37004553
Diaphragm Accumulator DACC - 0.32L x 210 / 0,0 bar x 92 x 140.5 - G1/2 (F) - Freudenberg - 032-1315-044-611 - Steel/NBR - CE/PED - 37004553
Diaphragm Accumulator DACC - 0.32L x 210 / 0,0 bar x 92 x 140.5 - G1/2 (F) - Freudenberg - 032-1315-044-611 - Steel/NBR - CE/PED - 37004553
Diaphragm Accumulator DACC - 0.32L x 210 / 0,0 bar x 92 x 140.5 - G1/2 (F) - Freudenberg - 032-1315-044-611 - Steel/NBR - CE/PED - 37004553

Diaphragm Accumulator DACC - 0.32L x 210 / 0,0 bar x 92 x 140.5 - G1/2 (F) - Freudenberg - 032-1315-044-611 - Steel/NBR - CE/PED - 37004553

Item no. 37004553
Brand Integral (Freudenberg Sealing Technologies)
Material NBR
net weight 1200 Gram
Packaging Unit 1
Diaphragm Accumulator DACC - 0.32L x 210 / 0,0 bar x 92 x 140.5 - G1/2 (F) - Freudenberg - 032-1315-044-611 - Steel/NBR - CE/PED - 37004553 measurement
Specifications
Nominal volume (V) 0,32 l
max. Load 210 Bar
Width (b) 140.5
Outer diameter (D) 92
Internal thread fluid port (IG) G 1/2 (F)
Material NBR
Freudenberg
€ 137,31
per piece
€ 137,31 inc. vat
Stock 30
Stock Delivery time
30 On workingdays before 15:00, shipped the same day
Minimum order quantity: 1
bar
Often bought together
Unique selling points
  • Our diaphragm accumulators are pre-charged free of charge to the pressure level you require, fully tailored to the needs of your application.
Specifications
Delivery timeRequest a quote
In stock Yes, 30 pcs
Article number 37004553
Nominal volume (V)0,32 l
max. Load210 Bar
Width (b) 140.5
Outer diameter (D)92
Internal thread fluid port (IG)G 1/2 (F)
MaterialNBR
Alternative product number032-1315-044-611
BrandIntegral (Freudenberg Sealing Technologies)
Catalog itemremove
DesignDACC
Dimensions0.32X210X92.50X140.5
Exterior materialSteel
External thread fluid port (AG)None
extraSupplierTekstremove
Filling gas (GAS)100% N2
Internal screw-in depth fluid port (A)14
Maximum operating temperature (Tmax)80
Minimum operating temperature (Tmin)-20
ModelDACC
net weight1200 Gram
Operating fluid (Fld)Mineral Oil
Opvolging productnummer032G000044611
Packaging Unit1
Permissible pressure fluctuation (PV)130
Permissible pressure ratio (PR)1:8
Precharge pressure at 20°C (Ppre)0,00
Sealing surface internal thread fluid side (CIG)29
Type of gas connection (GTYP)Standaard EU M28x1,5
Wrench size (E)WS 32
Also found under
Accumulators
download Download/print specifications PDF
Description

Diaphragm Accumulator DACC - 0.32L x 210 / 0,0 bar x 92 x 140.5 - G1/2 (F) - Freudenberg - 032-1315-044-611 - Steel/NBR - CE/PED - 37004553
