1 - 30 of 36 results
Item no. | Outer diameter (D) | Inner diameter (d) | Width (H) | Width of installation space (L) | Material | Design | Stock | Price | |||
---|---|---|---|---|---|---|---|---|---|---|---|
|
24315869 | 30 | 23.8 | 4.3 | 4.8 | PTFE K202 | NRVA | ? |
On request
|
Details | Quotation |
|
24357778 | 58 | 48.6 | 6.5 | 7.1 | PTFE K270 | NRVA | ? |
On request
|
Details | Quotation |
|
49014349 | 257 | 244.8 | 8.5 | 9.5 | PTFE E270 | NRVA | ? |
On request
|
Details | Quotation |
|
49071771 | 341 | 328.8 | 8.5 | 9.5 | PTFE Y002 | NRVA | ? |
On request
|
Details | Quotation |
|
49081906 | 59.4 | 50 | 6.5 | 7.1 | PTFE K202 | NRVA | ? |
On request
|
Details | Quotation |
|
49018431 | 420 | 407.8 | 8.5 | 9.5 | PTFE K202 | NRVA | ? |
On request
|
Details | Quotation |
|
49018452 | 350 | 337.8 | 8.5 | 9.5 | PTFE K202 | NRVA | ? |
On request
|
Details | Quotation |
|
49020131 | 240 | 227.8 | 8.5 | 9.5 | PTFE K202 | NRVA | ? |
On request
|
Details | Quotation |
|
49020142 | 190 | 177.8 | 8.5 | 9.5 | PTFE K202 | NRVA | ? |
On request
|
Details | Quotation |
|
49046572 | 425 | 412.8 | 8.5 | 9.5 | PTFE GM201 | NRVA | ? |
On request
|
Details | Quotation |
|
49019408 | 420 | 407.8 | 8.5 | 9.5 | PTFE GM201 | NRVA | ? |
On request
|
Details | Quotation |
|
49017555 | 350 | 337.8 | 9 | 10 | PTFE GM201 | NRVA | ? |
On request
|
Details | Quotation |
|
49011273 | 12 | 7.5 | 3.1 | 3.6 | PTFE E202 | NRVA | ? |
On request
|
Details | Quotation |
|
49031950 | 22.5 | 18 | 3.1 | 3.6 | PTFE E202 | NRVA | ? |
On request
|
Details | Quotation |
|
24315825 | 90 | 80.6 | 6.5 | 7.1 | PTFE K270 | NRVA | ? |
On request
|
Details | Quotation |
|
24306946 | 85 | 75.6 | 6.5 | 7.1 | PTFE K270 | NRVA | ? |
On request
|
Details | Quotation |
|
24315823 | 75 | 65.6 | 6.5 | 7.1 | PTFE K270 | NRVA | ? |
On request
|
Details | Quotation |
|
24315822 | 70 | 60.6 | 6.5 | 7.1 | PTFE K270 | NRVA | ? |
On request
|
Details | Quotation |
|
24315820 | 63 | 53.6 | 6.5 | 7.1 | PTFE K270 | NRVA | ? |
On request
|
Details | Quotation |
|
24315818 | 56 | 46.6 | 6.5 | 7.1 | PTFE K270 | NRVA | ? |
On request
|
Details | Quotation |
|
24315817 | 55 | 45.6 | 6.5 | 7.1 | PTFE K270 | NRVA | ? |
On request
|
Details | Quotation |
|
24315816 | 50 | 40.6 | 6.5 | 7.1 | PTFE K270 | NRVA | ? |
On request
|
Details | Quotation |
|
24315874 | 45 | 38.8 | 4.3 | 4.8 | PTFE K270 | NRVA | ? |
On request
|
Details | Quotation |
|
24315872 | 40 | 33.8 | 4.3 | 4.8 | PTFE K270 | NRVA | ? |
On request
|
Details | Quotation |
|
24315871 | 36 | 29.8 | 4.3 | 4.8 | PTFE K270 | NRVA | ? |
On request
|
Details | Quotation |
|
24315831 | 150 | 140.6 | 6.5 | 7.1 | PTFE K270 | NRVA | ? |
On request
|
Details | Quotation |
|
24315827 | 110 | 100.6 | 6.5 | 7.1 | PTFE K270 | NRVA | ? |
On request
|
Details | Quotation |
|
24315826 | 100 | 90.6 | 6.5 | 7.1 | PTFE K270 | NRVA | ? |
On request
|
Details | Quotation |
|
24315824 | 80 | 70.6 | 6.5 | 7.1 | PTFE K202 | NRVA | ? |
On request
|
Details | Quotation |
|
24315873 | 42 | 35.8 | 4.3 | 4.8 | PTFE K202 | NRVA | ? |
On request
|
Details | Quotation |

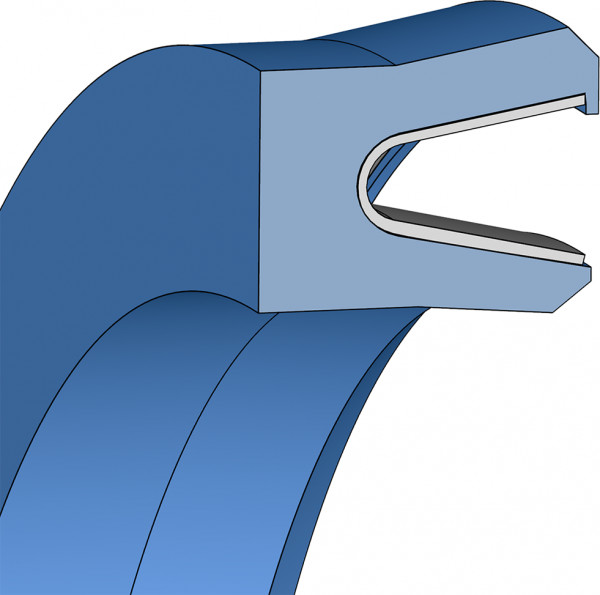

Introducing the groundbreaking NRVA Piston Seals, meticulously engineered to redefine hydraulic sealing performance. These one-sided seals are designed to withstand pressure, featuring a metal spring that serves as a biasing component for the sealing lips. The NRVA Piston Seals excel in diverse applications, from stroke and rotation to swivel movements and static setups, offering universal chemical resistance and exceptional performance across a wide temperature range.
The NRVA Piston Seals set a new standard for sealing efficiency with their innovative design. The incorporation of a metal spring allows the seals to remain permanently elastic, ensuring optimal sealing performance even under the most demanding conditions. These seals are engineered to perform reliably in small housing configurations, making them an ideal choice for applications with limited space.
Elevate your hydraulic systems to unmatched levels with NRVA Piston Seals. Engineered for single-sided pressure applications, these seals boast a range of advantages, including compatibility with high pressures and vacuum, universal chemical resistance, and dependable performance across varying temperatures. With exceptional dry-running properties, low frictional forces, and resistance to aging, NRVA Piston Seals ensure your systems run smoothly and efficiently.
Choose NRVA Piston Seals to experience the power of advanced sealing technology. Embrace the innovative design and superior materials that ensure top-tier sealing performance across diverse hydraulic applications.
