| Item no. | 49404527 |
| Brand | Dichtomatik |
| Material | FKM |
| net weight | 177.14 Gram |
| Packaging Unit | 1 |
| Design | WA |
| NEW - Inner diameter (d1) | 150 mm |
| NEW - Outside diameter (d2) | 180 mm |
| NEW - Seal width (b) | 13 mm |
| Material | FKM |
| Stock | Delivery time |
|---|---|
| 788 | Shipping in 3-5 days |
| Quantity per PC |
Per piece |
|---|---|
| 1+ | € 36,3600 |
| 2+ | € 36,3600 |
| 5+ | € 30,7680 |
| 10+ | € 30,7700 |
| 20+ | € 26,0520 |
| 50+ | € 246,2160 |
| 100+ | € 220,2380 |
| 200+ | € 206,4460 |
| 500+ | € 182,4380 |
| 1000+ | € 170,2740 |
| 2500+ | € 158,1120 |
| In stock | Yes, 788 pcs |
| Article number | 49404527 |
| Design | |
| Design | WA |
| Dimensions | |
| NEW - Inner diameter (d1) | 150 mm |
| NEW - Outside diameter (d2) | 180 mm |
| NEW - Seal width (b) | 13 mm |
| Dimensions | 150x180x13 |
| General | |
| Unit | pcs |
| Identification | |
| Brand | Dichtomatik |
| Catalog item | check |
| Logistics | |
| country of origin | TW |
| HS-code | 84879090 |
| net weight | 177.14 Gram |
| Material | |
| Material | FKM |
| Compound | 80 FKM FP803403 |
| Packaging | |
| Packaging description | 1 |
| Packaging Unit | 1 |
The Oil Seal - 150x180x13 - WA - 80 FKM FP803403 - Dichtomatik - 49404527 - Packaging Unit 1 is a WA oil seal from Dichtomatik with an inner diameter of 150, an outer diameter of 180 and a width of 13. This radial shaft seal therefore has the dimensions 150x180x13 and is manufactured from FKM, using compound 80 FKM FP803403. It is Dichtomatik article number 49404527.

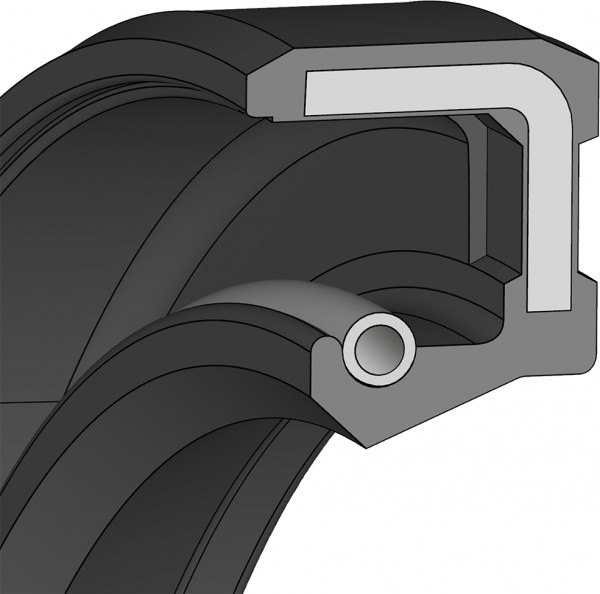

The WA profile is designed for the dynamic sealing of rotating machine components such as shafts, hubs and shaft assemblies. The sealing lip is pressed against the shaft surface by a garter spring and its sealing function is independent of the direction of rotation. The profile has a fully rubber-covered outer surface, which ensures a secure fit and contributes to static sealing in the housing bore. The WA does not have a separate dust lip.
This version in FKM can be used within a temperature range of -25 to +150 °C. For FKM, the maximum specified circumferential speed is 34 m/s. The material is suitable for mineral and synthetic oils and greases, engine oil, transmission oil and ATF oil. The maximum specified pressure for the WA is 0.05 MPa. These maximum values cannot necessarily be reached simultaneously.
