| Item no. | 49206071 |
| Brand | Dichtomatik |
| Material | NBR |
| net weight | 560 Gram |
| Packaging Unit | 1 |
| Design | WCS |
| NEW - Inner diameter (d1) | 270 mm |
| NEW - Outside diameter (d2) | 310 mm |
| NEW - Seal width (b) | 16 mm |
| Material | NBR |
| Quantity per PC |
Per piece |
|---|---|
| 1+ | € 41,3967 |
| 2+ | € 41,4000 |
| 5+ | € 39,0120 |
| 10+ | € 39,0100 |
| 20+ | € 31,9910 |
| 50+ | € 319,9080 |
| 100+ | € 31,9910 |
| 200+ | € 319,9120 |
| Article number | 49206071 |
| Design | |
| Design | WCS |
| Dimensions | |
| NEW - Inner diameter (d1) | 270 mm |
| NEW - Outside diameter (d2) | 310 mm |
| NEW - Seal width (b) | 16 mm |
| Dimensions | 270x310x16 |
| General | |
| Unit | pcs |
| Identification | |
| Brand | Dichtomatik |
| Catalog item | check |
| Logistics | |
| country of origin | TW |
| HS-code | 84879090 |
| net weight | 560 Gram |
| Material | |
| Material | NBR |
| Compound | 70 NBR S1RA71NB |
| Packaging | |
| Packaging description | 1 |
| Packaging Unit | 1 |
The Oil Seal - 270x310x16 - WCS - 70 NBR NB703430 - Dichtomatik - 49206071 - Packaging Unit 1 is a WCS oil seal from Dichtomatik with an inner diameter of 270, an outer diameter of 310 and a width of 16. This radial shaft seal therefore has the dimensions 270x310x16 and is manufactured from NBR, using compound 70 NBR S1RA71NB. It is Dichtomatik article number 49206071.

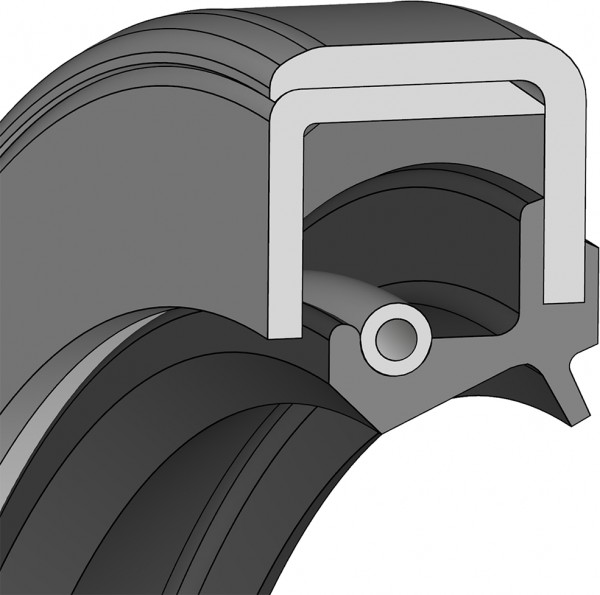

The WCS profile is designed for the dynamic sealing of rotating machine components such as shafts, hubs and shaft assemblies. This design features a spring-loaded main sealing lip, an additional dust lip and a closed metal outer casing with a reinforcing plate. The dust lip helps protect the main sealing lip against moderate amounts of external dust and dirt. The rigid metal construction provides a secure and precise fit and makes the profile suitable for larger diameters and difficult installation conditions.
This version in NBR can be used within a temperature range of -40 to +80 °C, with short-term exposure up to +100 °C. The maximum specified circumferential speed of the WCS profile is 8 m/s and the maximum permissible pressure is 0.05 MPa. NBR is suitable for various mineral oils, greases and hydraulic fluids. The additional dust lip causes additional friction and can therefore result in increased heat generation. The maximum pressure, temperature and circumferential speed cannot necessarily be reached simultaneously.
