22 results
Item no. | Inner diameter (dN) | Outer diameter (DN) | Width (H) | Width of installation space (L) | Shore Hardness | Material | Design | Stock | Price | |||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
49042525 | 10 | 17 | 2.3 | 2.5 | 75 Shore A | 75 FKM 230553 | AIRZET PR | 3050 | € 15,22 | Details | |
![]() |
49017401 | 10 | 17 | 2.3 | 2.5 | 80 Shore A | 80 NBR 186349 | AIRZET PR | 30251 | € 6,01 | Details | |
![]() |
49041788 | 12 | 19 | 2.3 | 2.5 | 75 Shore A | 75 FKM 230553 | AIRZET PR | ? | € 16,67 | Details | Quotation |
![]() |
49017996 | 12 | 19 | 2.3 | 2.5 | 80 Shore A | 80 NBR 186349 | AIRZET PR | 4985 | € 6,58 | Details | |
![]() |
49042526 | 15 | 22 | 2.3 | 2.5 | 75 Shore A | 75 FKM 230553 | AIRZET PR | 7629 | € 16,67 | Details | |
![]() |
49017905 | 15 | 22 | 2.3 | 2.5 | 80 Shore A | 80 NBR 186349 | AIRZET PR | 916 | € 6,58 | Details | |
![]() |
49041789 | 16 | 25 | 2.8 | 3 | 75 Shore A | 75 FKM 230553 | AIRZET PR | 1526 |
On request
|
Details | Quotation |
![]() |
49017904 | 16 | 25 | 2.8 | 3 | 80 Shore A | 80 NBR 186349 | AIRZET PR | 63352 | € 6,58 | Details | |
![]() |
49030235 | 20 | 29 | 2.8 | 3 | 75 Shore A | 75 FKM 230553 | AIRZET PR | 5877 | € 18,28 | Details | |
![]() |
49017906 | 20 | 29 | 2.8 | 3 | 80 Shore A | 80 NBR 186349 | AIRZET PR | 5434 | € 7,22 | Details | |
![]() |
49042527 | 25 | 34 | 2.8 | 3 | 75 Shore A | 75 FKM 230553 | AIRZET PR | 573 | € 19,88 | Details | |
![]() |
49030179 | 25 | 34 | 2.8 | 3 | 80 Shore A | 80 NBR 186349 | AIRZET PR | 10825 | € 7,85 | Details | |
![]() |
49041790 | 30 | 39 | 2.8 | 3 | 75 Shore A | 75 FKM 230553 | AIRZET PR | 5131 | € 21,14 | Details | |
![]() |
49030180 | 30 | 39 | 2.8 | 3 | 80 Shore A | 80 NBR 186349 | AIRZET PR | 302 | € 8,33 | Details | |
![]() |
49042528 | 40 | 49 | 2.8 | 3 | 75 Shore A | 75 FKM 230553 | AIRZET PR | ? |
On request
|
Details | Quotation |
![]() |
49017968 | 40 | 49 | 2.8 | 3 | 80 Shore A | 80 NBR 186349 | AIRZET PR | 1588 | € 9,10 | Details | |
![]() |
49030174 | 42 | 51 | 2.8 | 3 | 80 Shore A | 80 NBR 186349 | AIRZET PR | ? | € 9,49 | Details | Quotation |
![]() |
49042530 | 50 | 59 | 2.8 | 3 | 75 Shore A | 75 FKM 230553 | AIRZET PR | 4462 | € 25,00 | Details | |
![]() |
49030181 | 50 | 59 | 2.8 | 3 | 80 Shore A | 80 NBR 186349 | AIRZET PR | 1715 | € 9,87 | Details | |
![]() |
49017399 | 6 | 13 | 2.3 | 2.5 | 80 Shore A | 80 NBR 186349 | AIRZET PR | 21221 | € 6,01 | Details | |
![]() |
49042524 | 8 | 15 | 2.3 | 2.5 | 75 Shore A | 75 FKM 230553 | AIRZET PR | ? | € 15,22 | Details | Quotation |
![]() |
49017400 | 8 | 15 | 2.3 | 2.5 | 80 Shore A | 80 NBR 186349 | AIRZET PR | 38365 | € 6,01 | Details |

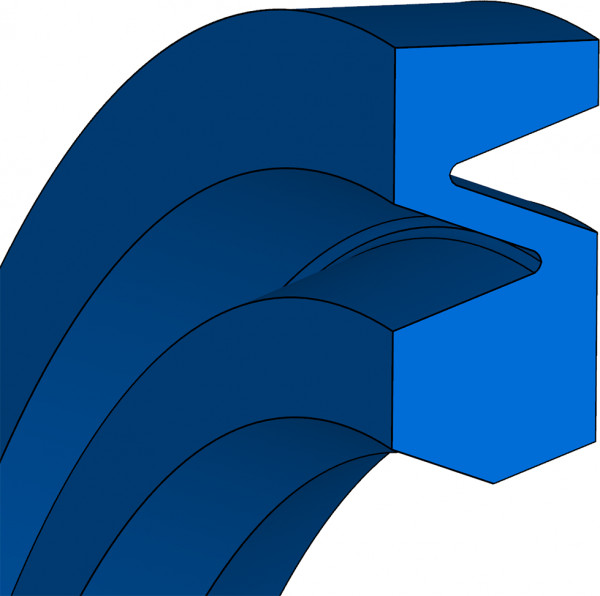

Presenting the innovative AIRZET PR Rod Seals from Merkel, designed to transform your pneumatic systems' performance. These seals are expertly made to satisfy the demanding requirements of pneumatic applications, offering unmatched sealing and friction control. They are made with precise accuracy and inventive design. Feel more dependable and efficient as the AIRZET PR Rod Seals adjust to fluctuating pressures and motions in pneumatic systems with ease, guaranteeing lifetime and peak performance. With the AIRZET PR Rod Seals, which raise the bar for performance in pneumatic applications, you can rely on Merkel's tradition of excellence to deliver exceptional quality and innovation.
The AIRZET PR Rod Seals redefine pneumatic sealing standards, offering an array of remarkable benefits. Engineered for applications requiring pressure activation, these seals excel in pneumatic cylinders. With a focus on delivering consistent sealing behavior across a wide pressure range, the AIRZET PR Rod Seals ensure reliable and efficient operation.
Experience advanced design and reliability with AIRZET PR Rod Seals. The compact design of these seals enables short cylinder cover designs, optimizing space utilization. The rounded sealing profile and flexible center section ensure a tight seal with minimal friction, maintaining an effective lubricating film for prolonged component life.
Elevate your pneumatic system's performance with AIRZET PR Rod Seals from Merkel. Trust in Merkel's expertise to deliver sealing solutions that enhance efficiency, reduce friction, and ensure long-lasting performance in your pneumatic applications.
