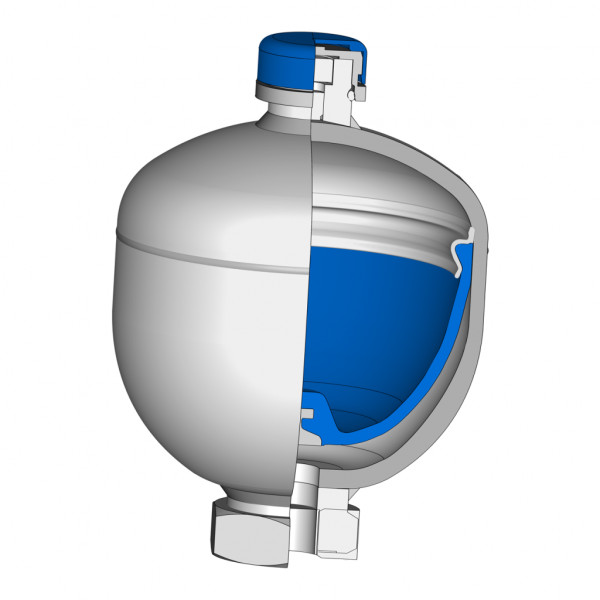

| Item no. | 37006227 |
| Brand | Integral (Freudenberg Sealing Technologies) |
| Material | ECO |
| net weight | 3500 Gram |
| Packaging Unit | 1 |
| Nominal volume (V) | 1,00 l |
| max. Load | 210 Bar |
| Width (b) | 187 |
| Outer diameter (D) | 136.2 |
| Internal thread fluid port (IG) | G1/2 (M33) |
| Material | ECO |
| Design | DACC |
| Stock | Delivery time |
|---|---|
| 28 | On workingdays before 15:00 ordered, shipped the same day |
| In stock | Yes, 28 pcs |
| Article number | 37006227 |
| Nominal volume (V) | 1,00 l |
| max. Load | 210 Bar |
| Width (b) | 187 |
| Outer diameter (D) | 136.2 |
| Internal thread fluid port (IG) | G1/2 (M33) |
| External thread fluid port (AG) | M33x1,5 |
| Filling gas (GAS) | 100% N2 |
| Internal screw-in depth fluid port (A) | 17 |
| Maximum operating temperature (Tmax) | 80 |
| Minimum operating temperature (Tmin) | -40 |
| Operating fluid (Fld) | Mineral Oil |
| Permissible pressure fluctuation (PV) | 140 |
| Permissible pressure ratio (PR) | 1:8 |
| Precharge pressure at 20°C (Ppre) | 0,00 |
| Sealing surface internal thread fluid side (CIG) | 34 |
| Type of gas connection (GTYP) | Standaard EU M28x1,5 |
| Wrench size (E) | WS 41 |
| Design | |
| Design | DACC |
| Dimensions | |
| Dimensions | 1.0X210X136.2X187 |
| General | |
| Unit | Stuks |
| Identification | |
| Alternative product number | 100-1315-083-641 |
| Brand | Integral (Freudenberg Sealing Technologies) |
| Catalog item | remove |
| Model | DACC |
| Successor Item | 100G000083641 |
| Internal | |
| extraSupplierTekst | remove |
| Logistics | |
| net weight | 3500 Gram |
| Material | |
| Material | ECO |
| Exterior material | Steel |
| Packaging | |
| Packaging description | 1 |
| Packaging Unit | 1 |
| Also found under | |
| Accumulators | |
