Filter results
close
NEW - Outer diameter (D)
NEW - Inner diameter (d)
NEW - Installation space width (L)
NEW - Seal width (H)
Material
close
Show more
In stock
close
Show more

23 results

Product
Specifications
Item no.
Design
Dimensions
Design
NEW - Outer diameter (D)
NEW - Inner diameter (d)
NEW - Installation space width (L)
NEW - Seal width (H)
Material
Material
Stock
Price
24346361
NRRA
85x70x12
NRRA
85
70
12
11.5
PTFE
PTFE
24380988
NRRA
440x470x23
NRRA
440
470
23
22.5
PTFE
PTFE
24305928
NRRA
40x30x8
NRRA
40
30
8
7.5
PTFE
PTFE
24328213
NRRA
192x177x11.5
NRRA
192
177
11.5
11
PTFE
PTFE
24336782
NRRA
130x115x11.5
NRRA
130
115
11.5
11
PTFE
PTFE
24314652
NRRA
110x90x15.5
NRRA
110
90
15.5
15
PTFE
PTFE
49323272
NRRA
140x150
NRRA
140
150
7.5
PTFE
PTFE
49327407
NRRA
35x45
NRRA
35
45
9
PE
PE
24353957
NRRA
55x40x11
NRRA
55
40
11
10.5
PTFE
PTFE
527497
NRRA
510x490x16
NRRA
510
490
16
15
PTFE
PTFE
24327601
NRRA
190x170x15.5
NRRA
190
170
15.5
15
PTFE
PTFE
24380990
NRRA
620x590x23
NRRA
620
590
23
22.5
PTFE
PTFE
49040114
NRRA
420x390x23
NRRA
420
390
23
22.5
PTFE
PTFE
24355102
NRRA
340x310x23
NRRA
340
310
23
22.5
PTFE
PTFE
24355098
NRRA
270x240x23
NRRA
270
240
23
22.5
PTFE
PTFE
24340329
NRRA
145x125x15.5
NRRA
145
125
15.5
15
PTFE
PTFE
24316348
NRRA
320x290x23
NRRA
320
290
23
22.5
PTFE
PTFE
24316380
NRRA
100x80x15.5
NRRA
100
80
15.5
15
PTFE
PTFE
24316379
NRRA
80x60x15.5
NRRA
80
60
15.5
15
PTFE
PTFE
24314269
NRRA
80x60x15.5
NRRA
80
60
15.5
15
PTFE
PTFE
24314279
NRRA
250x220x23
NRRA
250
220
23
22.5
PTFE
PTFE
24314277
NRRA
200x170x23
NRRA
200
170
23
22.5
PTFE
PTFE
24312040
NRRA
100x80x15.5
NRRA
100
80
15.5
15
PTFE
PTFE
Compare

Experience Excellence with NRRA Piston Seals: Precision Sealing Solutions

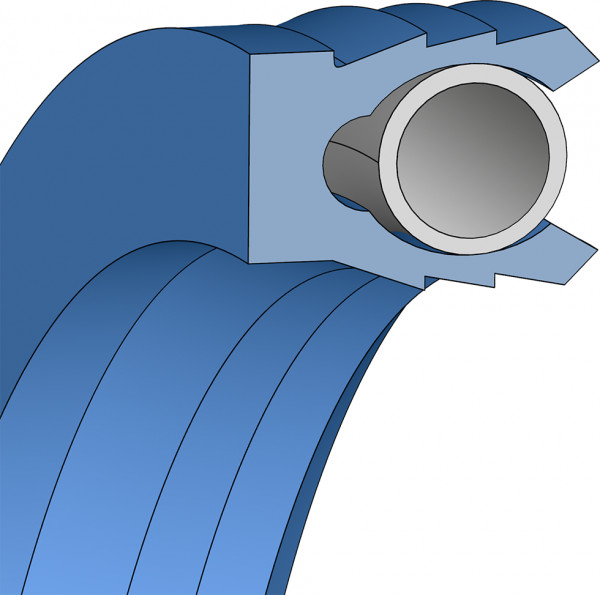

Introducing the exceptional NRRA Piston Seals, meticulously crafted to provide precision sealing solutions for hydraulic systems. These seals are designed for one-sided pressure on the seal, featuring a unique metal spring that serves as a biasing component for the sealing lips. The NRRA Piston Seals excel in various applications, including stroke, rotation, swivel movements, static applications, and even under extreme pressures and vacuums.

Innovative Design for Superior Performance

The NRRA Piston Seals showcase a cutting-edge design that utilizes a metal spring to ensure reliable sealing. As the system pressure comes into play during operation, it cancels out the preload, allowing for optimized sealing under dynamic conditions. These seals are engineered to excel in small housing setups, making them a preferred choice where space is a constraint.

Versatile Solution for Diverse Applications

Benefit from the numerous advantages of NRRA Piston Seals, including high pressure and vacuum compatibility, exceptional chemical resistance, wide temperature range, good dry-running properties, low frictional forces, and resistance to aging. Whether it's stroke, rotation, swivel movements, or static applications, these seals demonstrate superior performance and remain permanently elastic thanks to the incorporated metal spring.

Choose NRRA Piston Seals to unlock the potential of advanced sealing technology. Experience dependable and efficient sealing solutions across a range of applications, all backed by a design that ensures long-lasting performance and reliability.
