1 - 30 of 32 results
| Item no. | Design | NEW - Inner diameter (d) | NEW - Outer diameter (D) | NEW - Installation space width (L) | NEW - Seal width (H) | Material | Stock | Price | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
49017182 | NRVI | 273 mm | 285.2 mm | 9.5 mm | 8.5 mm | PTFE | ? |
On request
|
Details | Quotation |
|
|
24315974 | NRVI | 90 mm | 99.4 mm | 7.1 mm | 6.5 mm | PTFE | ? | € 50,82 | Details | Quotation |
|
|
24315990 | NRVI | 80 mm | 89.4 mm | 7.1 mm | 6.5 mm | PTFE | ? | € 47,41 | Details | Quotation |
|
|
24315988 | NRVI | 70 mm | 79.4 mm | 7.1 mm | 6.5 mm | PTFE | ? | € 39,50 | Details | Quotation |
|
|
24315987 | NRVI | 65 mm | 74.4 mm | 7.1 mm | 6.5 mm | PTFE | ? | € 36,96 | Details | Quotation |
|
|
24315985 | NRVI | 60 mm | 69.4 mm | 7.1 mm | 6.5 mm | PTFE | ? | € 33,74 | Details | Quotation |
|
|
24315983 | NRVI | 55 mm | 64.4 mm | 7.1 mm | 6.5 mm | PTFE | ? | € 28,83 | Details | Quotation |
|
|
24315982 | NRVI | 45 mm | 54.4 mm | 7.1 mm | 6.5 mm | PTFE | ? | € 22,85 | Details | Quotation |
|
|
24316017 | NRVI | 36 mm | 42.2 mm | 4.8 mm | 4.3 mm | PTFE | ? | € 20,06 | Details | Quotation |
|
|
24316016 | NRVI | 35 mm | 41.2 mm | 4.8 mm | 4.3 mm | PTFE | ? | € 19,01 | Details | Quotation |
|
|
24316014 | NRVI | 30 mm | 36.2 mm | 4.8 mm | 4.3 mm | PTFE | ? | € 15,38 | Details | Quotation |
|
|
24316012 | NRVI | 25 mm | 31.2 mm | 4.8 mm | 4.3 mm | PTFE | ? | € 12,82 | Details | Quotation |
|
|
24316011 | NRVI | 22 mm | 28.2 mm | 4.8 mm | 4.3 mm | PTFE | ? | € 12,82 | Details | Quotation |
|
|
24316036 | NRVI | 20 mm | 24.5 mm | 3.6 mm | 3.1 mm | PTFE | ? | € 12,82 | Details | Quotation |
|
|
24316035 | NRVI | 16 mm | 20.5 mm | 3.6 mm | 3.1 mm | PTFE | ? | € 12,82 | Details | Quotation |
|
|
24315980 | NRVI | 150 mm | 159.4 mm | 7.1 mm | 6.5 mm | PTFE | ? | € 106,56 | Details | Quotation |
|
|
24316034 | NRVI | 15 mm | 19.5 mm | 3.6 mm | 3.1 mm | PTFE | ? | € 12,82 | Details | Quotation |
|
|
24316033 | NRVI | 14 mm | 18.5 mm | 3.6 mm | 3.1 mm | PTFE | ? | € 12,82 | Details | Quotation |
|
|
24315978 | NRVI | 125 mm | 134.4 mm | 7.1 mm | 6.5 mm | PTFE | ? |
On request
|
Details | Quotation |
|
|
24316032 | NRVI | 12 mm | 16.5 mm | 3.6 mm | 3.1 mm | PTFE | ? | € 12,82 | Details | Quotation |
|
|
24315977 | NRVI | 115 mm | 124.4 mm | 7.1 mm | 6.5 mm | PTFE | ? | € 70,48 | Details | Quotation |
|
|
24315976 | NRVI | 110 mm | 119.4 mm | 7.1 mm | 6.5 mm | PTFE | ? | € 64,08 | Details | Quotation |
|
|
24315975 | NRVI | 100 mm | 109.4 mm | 7.1 mm | 6.5 mm | PTFE | ? | € 57,87 | Details | Quotation |
|
|
49028545 | NRVI | 65 mm | 77.2 mm | 9.5 mm | 8.5 mm | PTFE | ? |
On request
|
Details | Quotation |
|
|
49436378 | NRVI | 35 mm | 41.2 mm | 4.8 mm | 4.3 mm | PTFE | ? |
On request
|
Details | Quotation |
|
|
49067678 | NRVI | 42 mm | 51.4 mm | 7.1 mm | 6.5 mm | PTFE | ? |
On request
|
Details | Quotation |
|
|
24315981 | NRVI | 42 mm | 51.4 mm | 7.1 mm | 6.5 mm | PTFE | ? | € 22,85 | Details | Quotation |
|
|
24316015 | NRVI | 32 mm | 38.2 mm | 4.8 mm | 4.3 mm | PTFE | ? | € 19,01 | Details | Quotation |
|
|
24316013 | NRVI | 28 mm | 34.2 mm | 4.8 mm | 4.3 mm | PTFE | ? | € 15,38 | Details | Quotation |
|
|
24315986 | NRVI | 63 mm | 72.4 mm | 7.1 mm | 6.5 mm | PTFE | ? | € 36,96 | Details | Quotation |

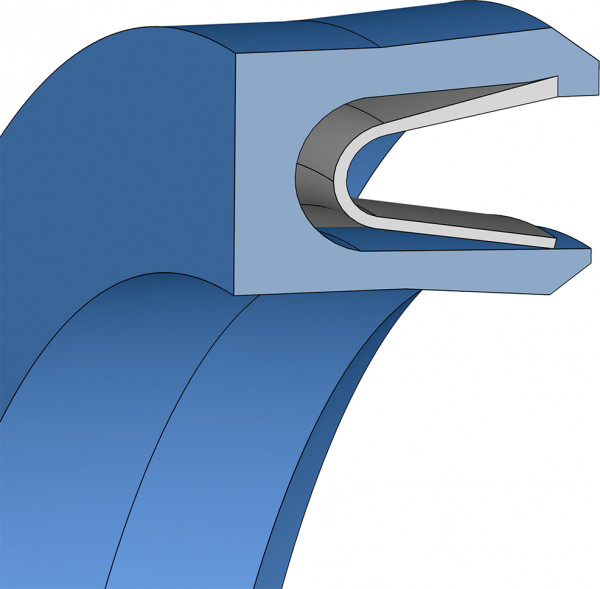

Unveil the exceptional capabilities of NRVI Rod Seals, meticulously designed for hydraulic applications. Characterized by their unique design, NRVI Rod Seals operate with a one-sided pressure on the seal, utilizing a metal spring as a pivotal element for the sealing lips. The innovative system pressure dynamics ensure operational integrity, enhancing the overall sealing performance.
The NRVI Rod Seals offer a multitude of advantages that set them apart. With a compact profile suited for small housings, these seals excel under high pressures and vacuum conditions. Their versatility extends to various movements such as stroke, rotation, swivel, and static applications. Furthermore, the NRVI Rod Seals boast universal chemical resistance and can confidently operate across a wide temperature range. They exhibit exceptional dry-running properties, low frictional forces, and remain immune to stick-slip occurrences.
A standout feature of the NRVI Rod Seals is their resilience. Notably resistant to aging, these seals maintain their effectiveness over time. The incorporation of a metal spring imparts permanent elasticity, enabling the seals to retain their sealing capacity even after extended periods of use. The NRVI Rod Seals exemplify enduring performance, making them an essential component in hydraulic systems where reliability and longevity are paramount.
