On pneumatic and hydraulic cylinders, P6 wipers protect the inside of the cylinder from ingress of debris during rod retraction. Freudenberg Sealing Technologies offers the right wiper for every type of cylinder and application with maximum reliability and durability: individual wipers with or without metal reinforcement, but also double wipers with or without pressure relief.
31 - 60 of 191 results
| Item no. | Shaft diameter (d) | Outer diameter (D) | Width (H) | Groove width (L) | shore hardness | Material | Design | Stock | Price | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
24031705 | 200 | 220 | 18 | 10.2 | 85 Shore A | 85 FKM K664 | P6 | ? | € 134,96 | Details | |
|
|
24035806 | 22 | 30.6 | 7 | 5.3 | 85 Shore A | 85 FKM K664 | P6 | ? | € 80,49 | Details | |
|
|
24066033 | 220 | 240 | 18 | 10.2 | 85 Shore A | 85 FKM K664 | P6 | ? | € 146,02 | Details | |
|
|
24041104 | 25 | 33.6 | 7 | 5.3 | 85 Shore A | 85 FKM K664 | P6 | ? | € 80,81 | Details | |
|
|
24032459 | 28 | 36.6 | 7 | 5.3 | 85 Shore A | 85 FKM K664 | P6 | 78 | € 80,96 | Details | |
|
|
24145755 | 290 | 305 | 13.5 | 7.7 | 85 Shore A | 85 FKM K664 | P6 | ? | € 181,03 | Details | |
|
|
24040159 | 30 | 38.6 | 7 | 5.3 | 85 Shore A | 85 FKM K664 | P6 | ? | € 81,12 | Details | |
|
|
24050857 | 32 | 40.6 | 7 | 5 | 85 Shore A | 85 FKM K664 | P6 | ? | € 81,42 | Details | |
|
|
24123970 | 320 | 340 | 18 | 10.2 | 85 Shore A | 85 FKM K664 | P6 | ? | € 219,16 | Details | |
|
|
24067592 | 380 | 410 | 25 | 15.2 | 85 Shore A | 85 FKM K664 | P6 | ? | € 321,12 | Details | |
|
|
24149417 | 400 | 420 | 18 | 10.2 | 85 Shore A | 85 FKM K664 | P6 | ? | € 301,21 | Details | |
|
|
24044057 | 42 | 50.6 | 7 | 5.3 | 85 Shore A | 85 FKM K664 | P6 | ? | € 82,36 | Details | |
|
|
24040959 | 45 | 53.6 | 7 | 5.3 | 85 Shore A | 85 FKM K664 | P6 | ? | € 82,66 | Details | |
|
|
24049905 | 55 | 65.6 | 7 | 5.3 | 85 Shore A | 85 FKM K664 | P6 | ? | € 84,87 | Details | |
|
|
24040605 | 63 | 73.6 | 7 | 5.3 | 85 Shore A | 85 FKM K664 | P6 | 7 | € 86,09 | Details | |
|
|
24040105 | 65 | 75.6 | 7 | 5.3 | 85 Shore A | 85 FKM K664 | P6 | ? | € 86,41 | Details | |
|
|
24147620 | 70 | 78.6 | 7 | 5.3 | 85 Shore A | 85 FKM K664 | P6 | ? | € 86,41 | Details | |
|
|
24046105 | 70 | 80.6 | 7 | 5.3 | 85 Shore A | 85 FKM K664 | P6 | ? | € 87,33 | Details | |
|
|
24044959 | 80 | 88.6 | 7 | 5.3 | 85 Shore A | 85 FKM K664 | P6 | ? | € 88,28 | Details | |
|
|
24031805 | 85 | 97.2 | 12 | 7.2 | 85 Shore A | 85 FKM K664 | P6 | ? | € 93,56 | Details | |
|
|
24033905 | 90 | 102.2 | 12 | 7.2 | 85 Shore A | 85 FKM K664 | P6 | 28 | € 91,24 | Details | |
|
|
24005053 | 210 | 220.6 | 7 | 5.3 | 85 Shore A | 85 NBR B247 | P6 | ? | € 86,09 | Details | |
|
|
24005063 | 220 | 240 | 18 | 10.2 | 85 Shore A | 85 NBR B247 | P6 | ? | € 95,98 | Details | |
|
|
24005067 | 225 | 245 | 18 | 10.2 | 85 Shore A | 85 NBR B247 | P6 | ? | € 102,75 | Details | |
|
|
24005068 | 230 | 245 | 16 | 10.2 | 85 Shore A | 85 NBR B247 | P6 | ? | € 100,27 | Details | |
|
|
24005069 | 230 | 250 | 18 | 10.2 | 85 Shore A | 85 NBR B247 | P6 | ? | € 104,45 | Details | |
|
|
24005075 | 240 | 260 | 18 | 10.2 | 85 Shore A | 85 NBR B247 | P6 | ? | € 108,04 | Details | |
|
|
24005083 | 260 | 280 | 18 | 10.2 | 85 Shore A | 85 NBR B247 | P6 | ? | € 115,98 | Details | |
|
|
24005096 | 290 | 305 | 15 | 7.7 | 85 Shore A | 85 NBR B247 | P6 | 34 | € 116,09 | Details | |
|
|
24005100 | 300 | 320 | 18 | 10.2 | 85 Shore A | 85 NBR B247 | P6 | ? | € 133,57 | Details |

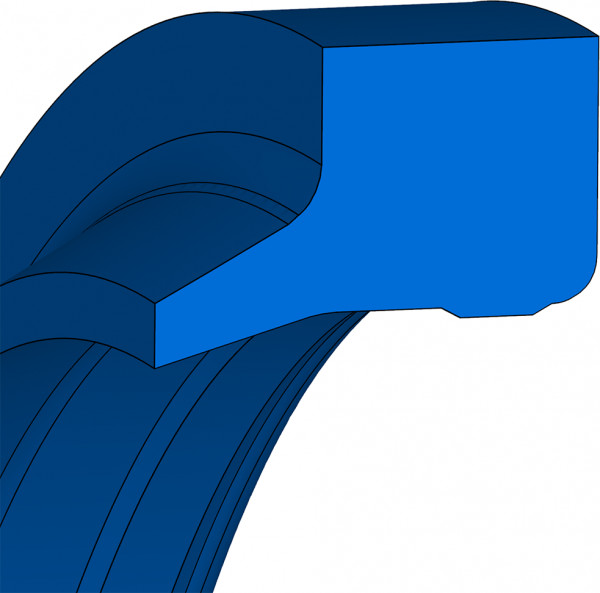

Introducing P6 Wipers, the epitome of innovation in single-acting elastomer wipers equipped with bearing segments. These wipers offer exceptional benefits that elevate their performance, making them a go-to choice for various applications. Primarily crafted from NBR material, P6 Wipers are specifically tailored for large diameters, ensuring efficient and reliable operation.
P6 Wipers shine when it comes to performance benefits. Their design allows for excellent seating on the outer diameter, delivering an impeccable sweeping action that effectively clears away contaminants. The versatility of P6 Wipers shines through as they can withstand a wide range of temperatures, ensuring consistent performance across diverse conditions. With the unique advantage of avoiding twisting within the housing and preventing pressure build-up between the seal and wiper, P6 Wipers prove their worth in demanding industrial environments.
P6 Wipers find their applications in various industries, including presses, steel hydraulic engineering, and rolling mills. These wipers are essential components that contribute to the efficient and reliable operation of heavy machinery. To ensure optimal performance, meticulous assembly is crucial. The Merkel Wiper P6 can be easily adjusted by deforming it into a kidney shape. For detailed guidance, refer to the provided technical manual. The run-in chamfers' length and angle should align with the specifications of the rod seal used, ensuring seamless integration of the wipers into your system.
Enhance your equipment's efficiency and reliability with P6 Wipers, setting new standards for elastomer wiper performance. Benefit from their NBR construction, exceptional sweeping action, and straightforward assembly process. Rely on P6 Wipers to maintain optimal operation in challenging conditions, contributing to the seamless performance of your machinery while ensuring minimized wear and tear.
