V-ring - VA-120 - Suitable for Shaft Ø 115-125 - 108x122x12,80 - 60 NBR NB603410 - Dichtomatik - 67123516

V-ring - VA-120 - Suitable for Shaft Ø 115-125 - 108x122x12,80 - 60 NBR NB603410 - Dichtomatik - 67123516

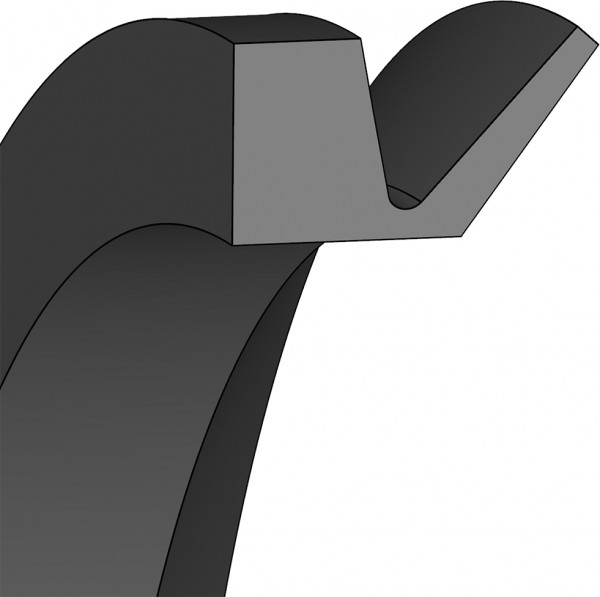

The V-ring VA-120 is a rotary seal which is mounted on a rotating shaft. This V-ring is designed to be mounted on shafts with a diameter of 115-125mm.

Thanks to the unique V-shaped lip of this seal, it offers good protection against dust, dirt, water and other contaminants. This significantly extends the life of bearings, oil seals and other components.

With an inner diameter of 108mm, an outer diameter of 122mm and a height of 12,8mm ensures the elastic fit that the V-ring stays firmly on the shaft without using an additional bore.

In addition, the V-ring also acts as a gap seal at higher circumferential speeds, minimizing both friction and wear.

Made of NBR rubber (60 Shore A), this VA type V-ring can withstand temperatures from -40°C to 100°C and offers excellent resistance to oils, greases and hydraulic fluids. This makes this VA-120 NBR V-ring suitable for applications such as mechanical engineering, gearboxes and agricultural machinery. Order your V-ring - VA-120 - Suitable for Shaft Ø 115-125 - 108x122x12,80 - 60 NBR NB603410 - Dichtomatik - 67123516 today at Sealing Technologies
