V-ring - VA-600 - Suitable for Shaft Ø 580-630 - 540x570x25 - 70 FKM FP709204 - Dichtomatik - 67040910

V-ring - VA-600 - Suitable for Shaft Ø 580-630 - 540x570x25 - 70 FKM FP709204 - Dichtomatik - 67040910

The V-ring VA-600 is a rotary seal which is mounted on a rotating shaft. This V-ring is designed to be mounted on shafts with a diameter of 580-630mm.

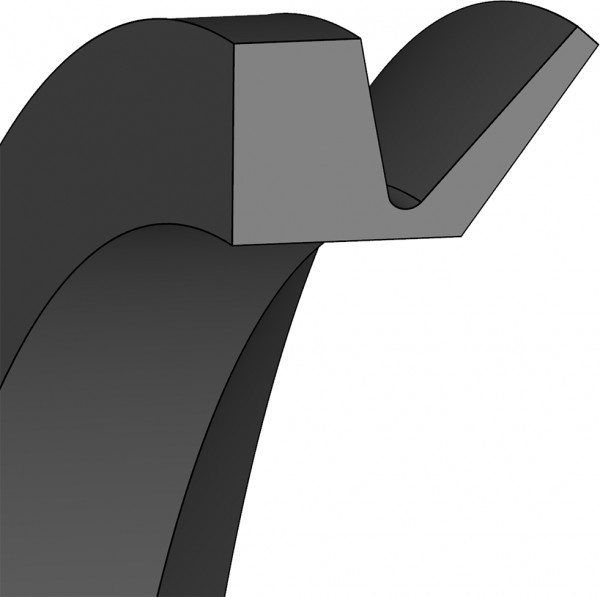

Thanks to the unique V-shaped lip of this seal, it offers good protection against dust, dirt, water and other contaminants. This significantly extends the life of bearings, oil seals and other components.

With an inner diameter of 540mm, an outer diameter of 570mm and a height of 25mm ensures the elastic fit that the V-ring stays firmly on the shaft without using an additional bore.

In addition, the V-ring also acts as a gap seal at higher circumferential speeds, minimizing both friction and wear.

Made of FKM rubber (60 Shore A), this V-ring can withstand high temperatures from -25°C to 200°C and offers excellent resistance to oils, chemicals and fuels. This makes this VA-600 FKM V-ring suitable for applications such as mechanical enigeering, gearboxes and Electric motors. Order your V-ring - VA-600 - Suitable for Shaft Ø 580-630 - 540x570x25 - 70 FKM FP709204 - Dichtomatik - 67040910 today at Sealing Technologies
